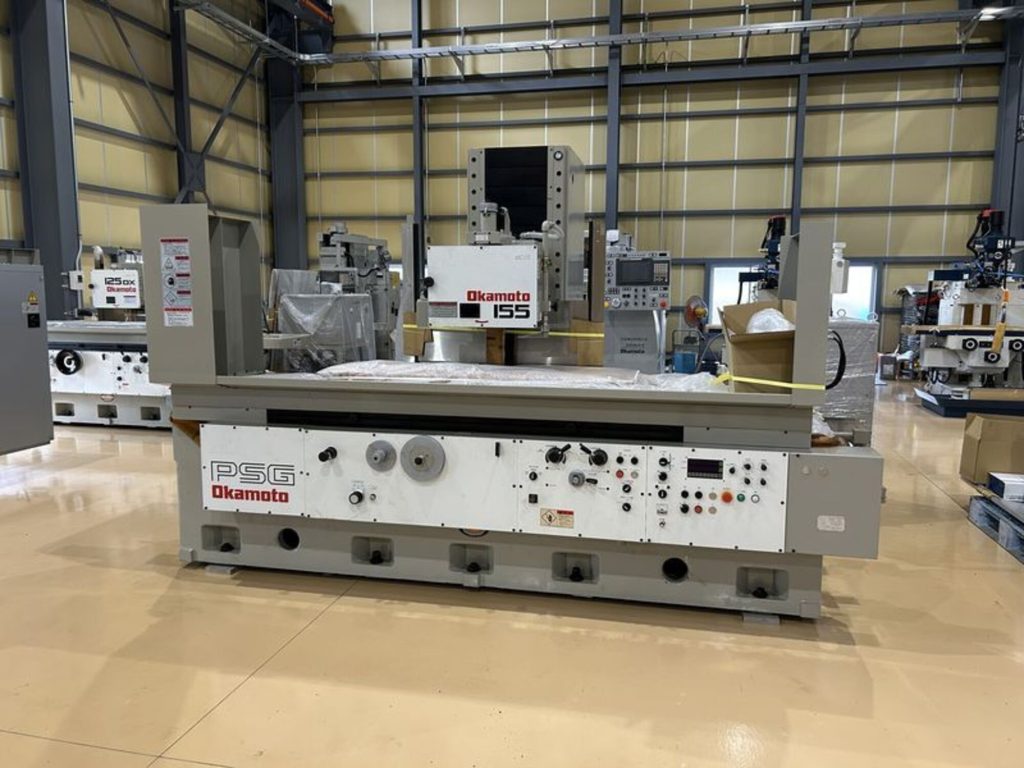

Surface Grinder Okamoto
{{ galleryProps.activeIndex + 1 }}/4
Description
Specifications:
Maker: Okamoto
Model: PSG-155DX(OH 2025)
Overhauled in 2025
Workpiece processing range: 1,500 × 500 × 595 mm
Table travel: 1,750 × 560 mm
Working surface size: 1,550 × 500 mm
Distance from table top to bottom of grinding wheel: 595 mm
Chuck dimensions: 1,500 × 500 × 100 mm
Maximum allowable workpiece mass (Chuck weight): 2,500 kg (555 kg)
Automatic infeed rate (Rough grinding): 0.001 to 0.05…
Specifications:
Maker: Okamoto
Model: PSG-155DX(OH 2025)
Overhauled in 2025
Workpiece processing range: 1,500 × 500 × 595 mm
Table travel: 1,750 × 560 mm
Working surface size: 1,550 × 500 mm
Distance from table top to bottom of grinding wheel: 595 mm
Chuck dimensions: 1,500 × 500 × 100 mm
Maximum allowable workpiece mass (Chuck weight): 2,500 kg (555 kg)
Automatic infeed rate (Rough grinding): 0.001 to 0.05 mm
Infeed options: 15 rough grinding steps, 10 fine grinding steps
Grinding wheel (OD × Width × ID): φ510 × 50 × φ127 mm
Grinding wheel speed: 1,100 rpm
Floor space required: 5,500 × 3,010 mm
Machine height: 2,200 mm
Machine weight: 8,000 kg
Vertical axis movable taper handle
Overhead wheel dresser
Grinding wheel (with flange)
Coolant system with magnetic separator (120 L)
Hydraulic unit (with automatic oil temperature controller)
Complete set of tools
